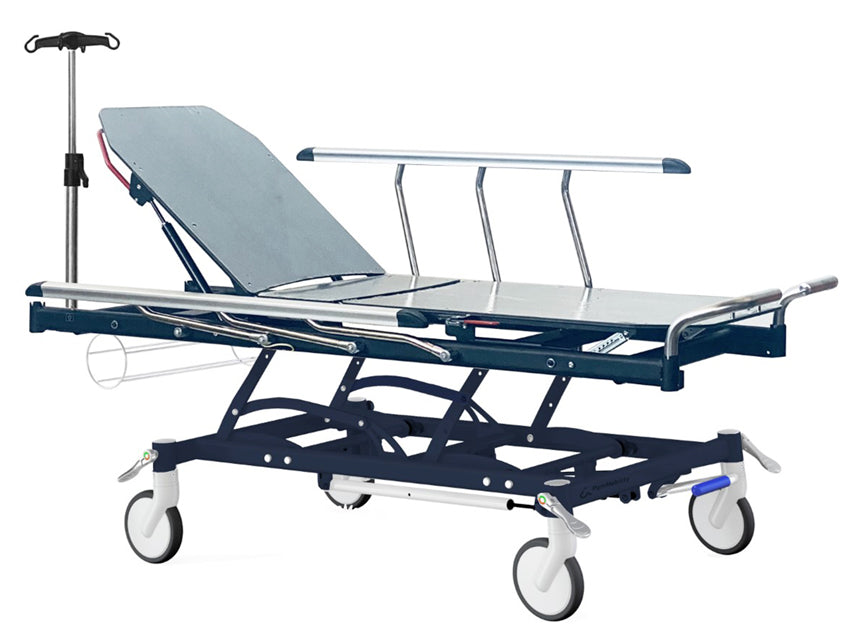

Tvískiptar sjúkrabörur með hæðarstillingu og baki sem stillt er með gasfjöðrum upp í 65°. Liggjandi flötur er úr röntgengegnsæju HPL-efni og grindin úr máluðu stáli.
Hæðin er stillt með stórum fótstigi og Trendelenburg-halli (±18°) með handfangi við fótenda. Fjögur 200 mm hjól eru með miðlægri bremsu.
- Heildarstærð 2000 x 825 mm, hæð 530–890 mm
- Liggjandi flötur 1900 x 630 mm, röntgengegnsær
- Bak stillanlegt upp í 65°
- Trendelenburg og öfug Trendelenburg ±18°
- Burðargeta 230 kg
- Samanbrjótanlegar hliðargrindir úr stáli
Helstu upplýsingar
- GIMA-vörunúmer 44790
- Sölueining: 1 stk.
Afhending
Afhendingartími: 6-8 virkir dagar.
Skjöl og nánari upplýsingar
- Skjal 1 (PDF)
- Skjal 2 (PDF)
- Skjal 3 (PDF)
- Skjal 4 (PDF)
- Skjal 5 (PDF)
- Skjal 6 (PDF)
- Skjal 7 (PDF)
- Skjal 8 (PDF)
Vörulýsing á ensku
ADJUSTABLE HEIGHT PATIENT TROLLEY with TR and RTR
Category: Furniture > Hospital ward stretchers
HEIGHT ADJUSTABLE PATIENT TROLLEY - TR and RTR
Two-section variable-height stretcher with adjustable backrest by gas devices up to 65°. Top made of radiolucent Hpl, steel frame and long leg section made of painted steel.
Possibility of insertion of cylinder basket and four IV poles, two in the head and two in the foot area.
Side bumpers on the frame for protection of the stretcher.
Two collapsible handles on the head side and one on the foot side, all in painted steel, to provide a safe and comfortable grip.
Adjustable height 530 to 890 mm by a large pedal located in the foot area.
All steel parts are epoxy powder coated.
Manual Trendelenburg and Reverse Trendelenburg (±18°) by lever located at the foot side of the stretcher.
Sturdy folding steel side rails with compass movement.
Four castors Ø 200 mm with simultaneous brake controlled by centralized pedal, directional ones at the head.
Made in Italy.
Technical data
Overall size: 2000x825xh 530-890 mm
Table size: 1900x630 mm
Max. backrest inclination: 65°
Safe working load: 230 kg
Norms: 93/42/EEC; 2007/47/EC, Medical Device Class I
Minimum order: 1
Type: Medical device
Class: I
RDM (NSIS): 2269838
CND: V0899
