Aiview V10 sjúklingaskjár 11,6"

AIVIEW V10 PATIENT MONITOR

Category: Ecg, monitors & ultrasound > Patient monitors Vital Sign and accessories

AIVIEW V10 PATIENT MONITOR 11.6" - 5 LEAD ECG

AI intelligent multi-parameter monitor, with hardware rgonomic design and software flat interactive design, meets ifferent needs for different hospital departments. Clear and oncise menu allows medical staff to easily learn how to use it, ignificantly improving the efficiency of use. It monitors ECG, pO2, PR, NIBP, Temp and RESP. Up to 5 leads of ECG can be isplayed on the same screen. AIVIEW provides a variety of moitoring modes, which greatly improves the experience for doctors and patients: night mode, privacy mode, intubation mode, monitoring paused mode. For adult, child and infant.

Features:

- EWS (Early warning score), MEWS, CART, GCS

- capacitive touch screen, easy and convenient to operate

- Wi-Fi connection

- integrated handle for easy transport

- ultra-high resolution provides clearer picture quality and better visual effects

- 105° tilted screen ergonomically designed for better bedside viewing

- dual alarm lights facilitate long-distance identification of alarm conditions. Left light: phisiological alarm, right light: technical alarm

- the absence of fan reduces noise to provide a better monitoring environment

Powerful clinical features

- 28 types of arrhythmia analysis to monitor patients' heart rate and give accurate results

- ST&QT analysis, HRV analysis, HRV analysis time > 5min;

- unique anti-motion algorithm blood oxygen technology MoveOXY, which ensures accurate measurements in the process of patient movement and in the case of low temperature or weak peripheral circulation.

AIVIEW can be also connected to a central monitoring station (35323) via wired and wireless networks and enables bedside observation, as well as direct connection to a thirdparty electronic medical record (EMR) via the HL7 output.

Technical data

Touchscreen display: Colour TFT LCD 11.6"

Resolution: 1366×768

Max. waveforms: 10

ECG

ECG channels: 5 leads

CMRR: Surgery mode, monitor mode, ST mode > 105dB / Diagnostic mode > 90dB

Frequency: Diagnostic mode: 0.05-150 Hz / Monitor mode: 0.5-40 Hz / Surgery mode: 1-20 Hz / ST mode: 0.05-40 Hz

Input impedance: =10MO

ECG scan speed: 6.25, 12.5, 25, 50 mm/s

Sampling rate: 500 Hz

Sensitivity selection: x1/8, x1/4, x1/2, x1, x2, x4, AUTO

Heart rate range: 15-350 bpm

RESP

Measuring range: Pediatric: 0-150 rpm Adult: 0-120 rpm

NIBP

Measuring range: 0~300 mmHg (0.0~40.0 kPa)

Mode: Manual, Auto, NIBP STAT, Customized multi-cycle

SpO2

Measuring range: 0% to 100%

Temp

Measuring range: 0°-50°C (32°-122°F) skin

Memory: 8G internal SD card

Data storage: NIBP recorder: 2000 sets / Trends data: 240 h / Events: 1000 sets

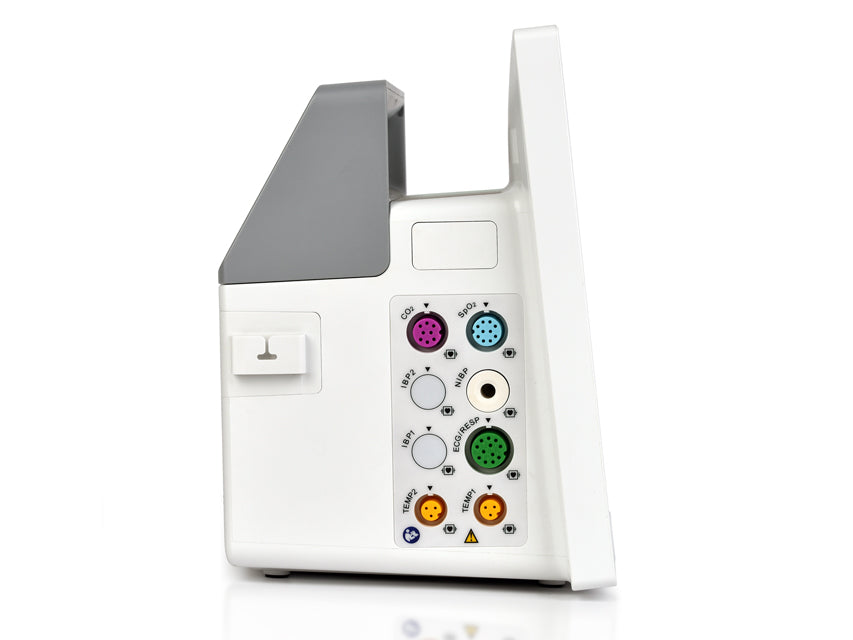

Ports: 1 RJ45, 1 VGA, 2 USB, 1 multi-function

Battery: rechargeable battery, 2750 mAh

Operating time: more than 4 hours

Size: 290x170x230 mm

Weight: =3 kg

Protection: IPX2, anti electricshock CF type

Voltage: 100-240 V, 50/60 Hz

Standard accessories

ECG cable 5 leads

Rechargeable lithium battery

NIBP adult cuff 25-35 cm

Power supply cable - 3 m

SpO2 adult probe with extension cable

Skin temp probe

25 disposable electrodes

Multilingual manual and firmware: GB, FR*, IT, ES*, T*, DE*, RU*

*Only available on www.gimaitaly.com

Minimum order: 1

Type: Medical device

Class: II B

RDM (NSIS): 3040912

CND: Z1203020292

GMDN: 33586
