Lýsing

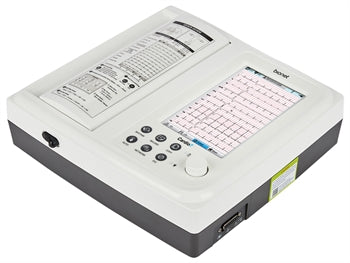

CARDIO 7 ECG er háþróað hjartalínuritstæki með 12 rásum og snertiskjá. Það býður upp á nákvæma greiningu og auðvelda notkun fyrir heilbrigðisstarfsfólk. Tækið er létt og flytjanlegt, sem gerir það hentugt fyrir mismunandi lækningaaðstæður.
Tæknileg gögn
| Tegund | Medical device |
| Flokkur (CE) | II A |
| EAN | 8023279333527 |
| CND | Z12050302 |
📄 Hlaða niður gagnablaði (PDF)
Lýsing á ensku
Technical Specifications ECG leads: 10 lead, 12 channel simultaneous ECG and acquisition Dimension: 300x200xh 97.5 mm, approx. 3.5 kg Recording channel: 3 channels + 1 rhythm, 3 channels + 3 rhythm, 6 channels + 1 rhythm, 12 channels, 6 channels + st map 1 channel Gain: 2.5, 5, 10, 20, auto (l~aVF: 10, V1~V6: 5) mm/mV Printing speed: 5, 12.5, 25, 50, 100 mm/s Sampling rate: Analysis - 500 s Digital - 8,000 s Filters: AC (50/60 Hz, -20 dB or better) Muscle (25~35 Hz, -3dB or better) Base line drift (0.05, 0.1, 0.2 Hz, -3 dB or better) Low pass filter: off, 40 Hz, 100 Hz, 150 Hz Display: 7" color TFT LCD display (800x480), 12 channels preview ID, HR, gain, speed, power status Monitor display: ID , date, sensitivity, speed, filter, form, rhythm lead User interface: Touch screen (alphanumeric and symbol available), Keyboard, rotary push-knob (pop-up menu) Patient data: ID , name, age, sex, height, weight, smoke, race, department, room number, study...etc. Basic measurement: Heart rate (30~300 bpm, ± 3 bpm), PR/RR int., QRS dur., QT/QTc int., P-R-T axis, SV1/RV5/R+S amp. Recorder: Thermal print head, roll paper width: A 4/Letter 215 mm (8.5") length: A 4 297 mm (11.7") letter 279 mm (11") A4 report paper: 210x300 mm (8.5"x11") Resolution: Vertical: 8 dot/mm (0.125 mm pitch) Electrical: I nternal noise: 20 µV (p-p) max Input impedance: =50 MO Input voltage range: = ±5 mV Common mode rejection: > 105 dB DC offset voltage: = ±400 mV Patient leakage current: < 10 µA Frequency response: 0.05 ~200 Hz in 3 dB Isolated defibrillation and ESU protected Signal quality control: Lead fault detection, signal saturation detection Pacemaker pulse detection ECG data storage: storage for 200 ECGs, built-in memory Power: input: 100-240 V, 1.5-0.75 A, 50-60 Hz / output: 15 V, 4.2 A Battery (Li-ion): Replaceable and rechargeable, lithium ion, 10.8V, 3250mA 6 hours of normal use or print 200 ECG pages (12 channel format at 25 mm/s and 10 mm/mV) Battery complete charge in 3 hours with power o
