CARDIOLINE Hjartalínurit100L BASIC er háþróað hjartalínuritstæki með 5 tommu snertiskjá í lit, sem veitir nákvæmar mælingar á hjartalínuriti. Þetta tæki er hannað til að mæta þörfum heilbrigðisstarfsfólks með fjölbreyttum stillingum og háþróaðri tækni. 12-leiða hjartalínurit (I, II, III, aVR-L-F, V1-6) Staðlaður 15D sjúklingakapal, 10 vírar CMRR: >100 dB Inntaksviðnám: 100 MOhm Sýnatökutíðni: 32000 sýni/sek/leið Hjartalínuritsupplausn: 5µV/LSB; 500 úr ryðfríu stáli Sveiflusvið: ± 325 mV Bandbreidd: 0,05-150 Hz Gangráðsgreining: Vélbúnaðargreining með stafrænum síum Defibrillation vernd: AAMI/IEC staðlar Tæknilegar upplýsingar Hentar fyrir: Sjúkrahús, Heilsugæslu, Læknastofur
Helstu upplýsingar
- GIMA-vörunúmer 54200
- Vöruflokkur: Hjartalínurit, monitors & ultrasound > Hjartalínurit and 24 hours Hjartalínurit > 3-6-12 channel Hjartalínurit
- Þyngd: 4.06 kg
Tæknilegar upplýsingar
| Gerð | Lækningatæki |
|---|---|
| CE-flokkur | II A |
| Sölueining | 1 stk. |
| Lágmarkspöntun | 1 |
| CND | Z12050302 |
Pakkning og sölueining
1 stk.
Afhending
Afhendingartími: 6-8 virkir dagar.
Skjöl og nánari upplýsingar
Vörulýsing á ensku

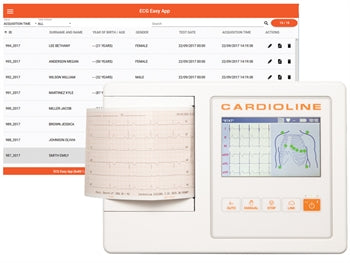

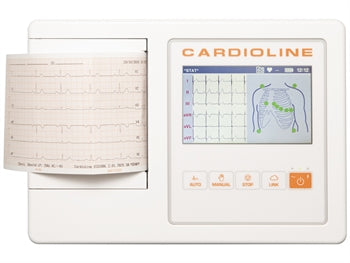

CARDIOLINE ECG 100L BASIC - 5" screenThe Cardioline ECG have been designed to provide simple and fast 12 lead resting ECG acquisition for the private practice. Particular attention has been dedicated to device usability using a brilliant 5" (54200-2) or 7" (54204-5) colour touch screen display, as well as dedicated keys for fast operation. User is guided through ECG acquisition step by step, from electrode placement, to quality checking, acquisition, printing and storage. Automatic, manual, Stat or rhythm ECGs can alternatively be acquired at the simple touch of a key. The new Rhythm ECG function allows for rhythm analysis of 3 minutes of ECG, including HR trending and Variability. ECG files can be storedon the device or exported, through USB connection to a PC or a memory stick. Support most printing formatsStandard or Cabrera 3, 3+1, 3+3, 6, 12 (12 only 54204-5) channels in automatic mode and 3, 6 or 12 printout channels in continuous mode, as well as printout of the rhythm strip. Multilingual switchable internal software in 16 languages GB, FR, IT, ES, PT, DE, RO, RU, CZ, HR, BR, HU, NL, TR, RS, PL. Glasgow algorithm for pediatric and adult interpretation (only 54201 - 54205)The algorithm can diagnose any abnormality, usually recognizable through ECG: myocardial infarction, including AMI, ventricular hypertrophy, ST-T and common rhythm anomalies. Furthermore, the program detects conduction and QT interval prolongation malfunctions. ECG EasyApp to manage patient ECGs (included with 54202, 54205, optional for 54200-1, 54204)Through this App, ECG acquisitions can be received in SCP format on PC (via USB) and printed. Patient data and automatic interpretations, provided by ECG, can be modified, including test results. The operator can also customize rhythm strips layout with specific commands (speed, gain, filter etc.).
