Eko Core 500 stafræn hlustunarpípa – svört – EK0004

EKO CORE 500 DIGITAL STETHOSCOPE - black - EK0004

Category: Stethoscopes & sphygmos > Cardiology and electronic stethoscopes

EKO CORE 500™ DIGITAL STETHOSCOPE - black - EK0004

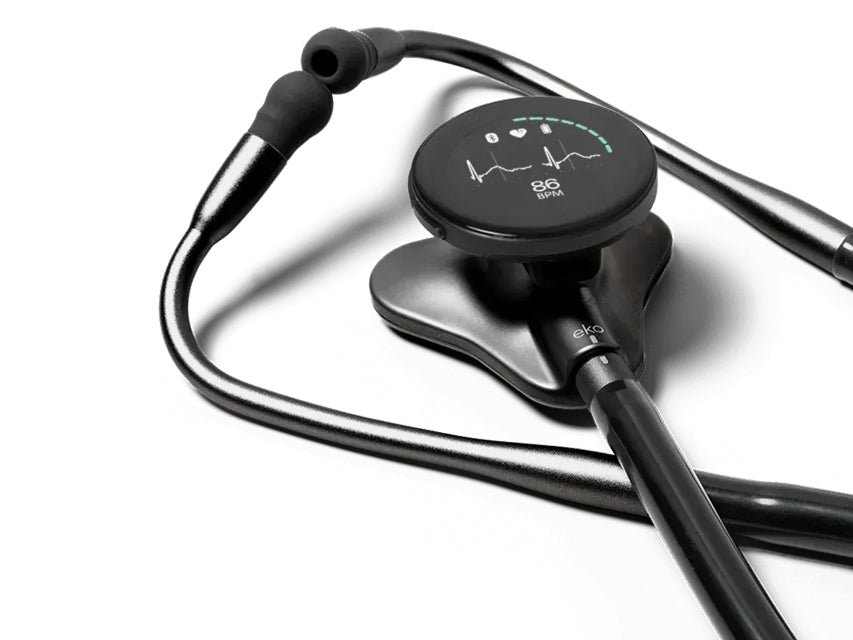

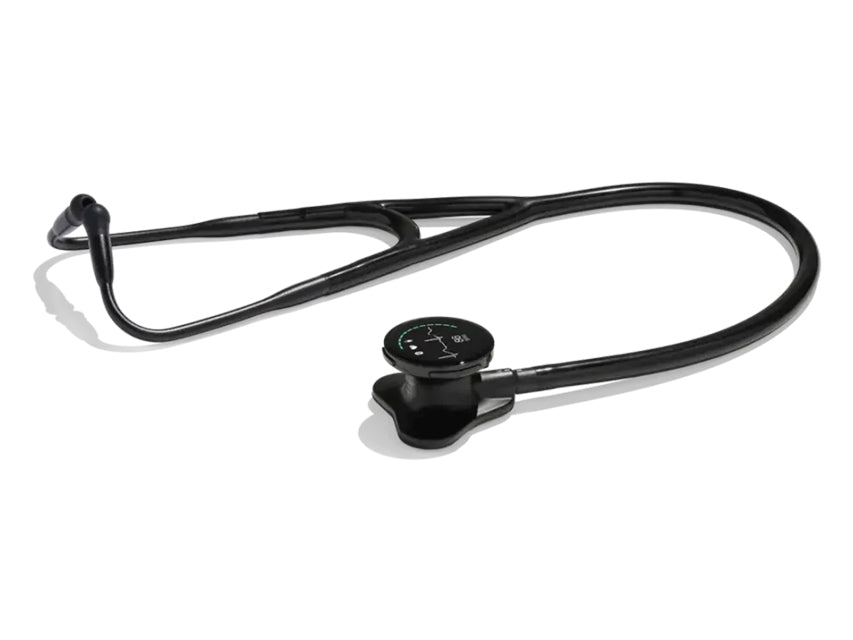

The CORE 500™ is a digital stethoscope, combining 3-lead ECG, unmatched audio clarity and waveform visualizations. Instead of using a hollow tube like with an analogue stethoscope, heart and lung sounds are delivered digitally through ear tip speakers. This results in unparalleled audio quality and sound cancellation. The device also connects to the Eko App to access a wide range of features and manage data.

Superior sound: experience 8x sound improvement thanks to advanced background noise reduction. Heart disease detection at double the rate compared to a traditional stethoscope.

Hear with precision, even in noisy environments: TrueSound™ technology unlocks active noise cancellation and up to 40x sound amplification. This allows for clearer detection of body sounds, facilitating confident diagnoses.

3 audio filters: toggle between Cardio, Pulmonary and Wid audio filters that are optimized to pick up heart, lung and body sounds.

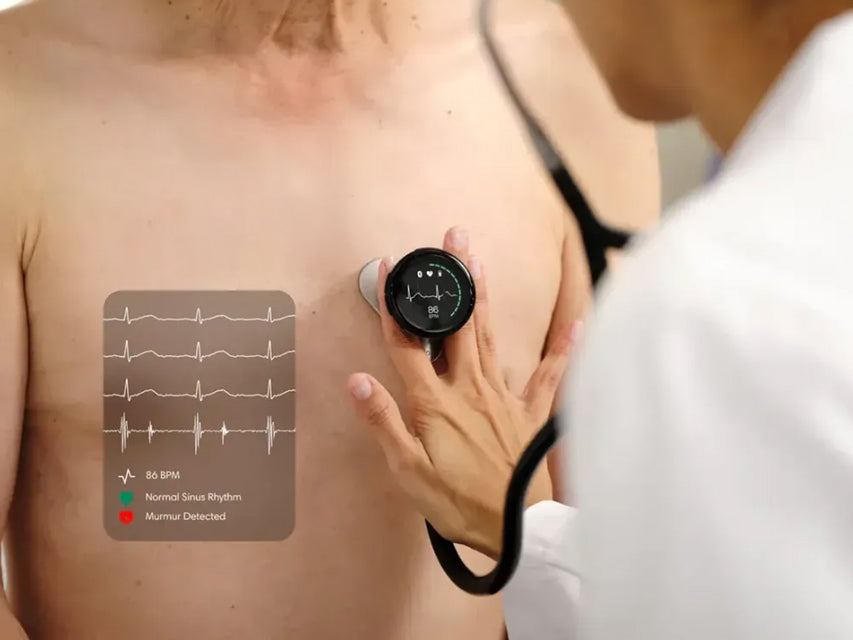

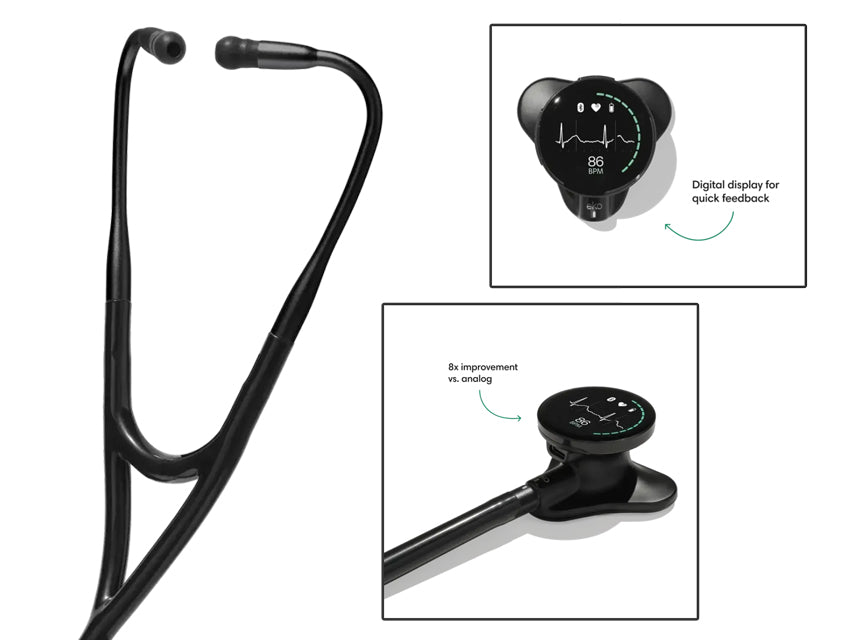

See insights in seconds: the full-colour display shows 1-lead ECG, streamlining workflow and providing essential data right at your fingertips.

Expand cardiac assessments: the integrated 3-lead ECG offers a more comprehensive view of patient’s heart, improving diagnostic accuracy.

Detect disease earlier: unlock murmur and AFib detection powered by Eko AI, along with sound recording, sharing and more, with an Eko+ membership for earlier diagnoses and seamless collaboration.

Designed to last: scratch and splash proof, with a battery lif of up to 60 hours, ensuring it stays powered through even the longest shifts.

Use with Bluetooth: connection to any device (via Eko App), like earbuds or hearing aids, allowing hearing-impaired physicians to access more information and simplifying exam flow.

Eko App

Connection to the Eko App allows the user to complete device setup and access standard features.

An Eko+ membership is available to unlock the Eko App's full feature set (see table below). A 14-day free trial is included with every purchase. Please note that feature availability may vary by country.

For further details on subscription options, please visi https://support.ekohealth.com

Chestpiece can be used alone, connected to phone or earphone by Bluetooth (via Eko App)

Real-time 3-ECG display

Technical data

Lead: 3-lead ECG

Frequency range: 0.1-250 Hz

Heart rate range: 30-200 bpm, ± 5 bpm

Amplification: up to 40x

Display: full-color LCD display, Ø 4.57 cm

Bluetooth: 4.2 low-energy

Power supply: rechargeable lithium-ion battery

Battery life: up to 300 minutes of continuous use and up to 60 hours of regular clinical use

Diaphragm diameter: 3 cm

Size - weight: 69 cm from ear tip to chestpiece - 186 g

Protection: IP44

Eko App free standard features:

Real-time ECG and PCG

Wireless listening

Cardiac, pulmonary, and wide listening modes

Single-sound recording with real-time playback

Average heart rate reading

Over-the-air (OTA) updates

Eko+ membership additional features (only available with annual fee):

Structural murmur detection supported by Eko AI

AFib detection supported by Eko AI

Sinus tachycardia and sinus bradycardia detection supported by Eko AI

Unlimited sound recording, saving, and playback

Access to saved recordings and secure file sharing

Guided 4-point exam flow

Patient profiles

PDF reports

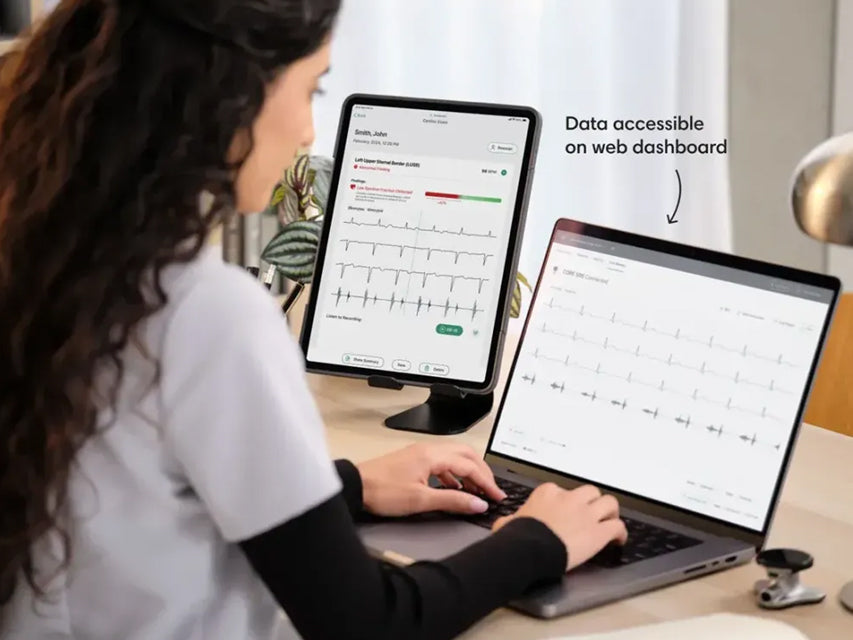

Web Dashboard access

First access to new software features

Standard accessories

4 Ear tips (2 small, 2 large)

10 alcohol wipes

USB-C cable

QR code manual: GB, FR, IT, ES, PT, DE, DK, SE, NO, HU, GR

1 Eko earpiece

14 - day free trial Eko+ membership

Minimum order: 1

Type: Medical device

Class: II A

RDM (NSIS): 2877100

CND: C9005
