Rafknúið sjúkrarúm með innbyggðum botni úr PP-plasti og rafmótor sem stýrir hreyfingum rúmhlutanna. Hjúkrunarfólk stjórnar helstu aðgerðum með handstýringu.
Rúmið er með samanbrjótanlegum hliðargrindum úr álblöndu, vökvastandi úr ryðfríu stáli og fjórum 12,7 cm hjólum. Stuðpúðar verja bæði rúm og veggi.
- Stærð 208,5 x 99,5 cm, dýnubotn 192,5 x 90 cm
- Hæðarstilling 42–73 cm
- Bak 0–75°, hné 0–46°
- Burðargeta 200 kg
- Mótor: 20.000 hreyfingar, undir 50 dB, 100–240 V
- Fylgir: handstýring, hliðargrindur, vökvastandur með 4 krókum, 2 þvagpokakrókar
Helstu upplýsingar
- GIMA-vörunúmer 44744
- Sölueining: 1 stk.
Afhending
Afhendingartími: 6-8 virkir dagar.
Skjöl og nánari upplýsingar
- Skjal 1 (PDF)
- Skjal 2 (PDF)
- Skjal 3 (PDF)
- Skjal 4 (PDF)
- Skjal 5 (PDF)
- Skjal 6 (PDF)
- Skjal 7 (PDF)
- Skjal 8 (PDF)
Vörulýsing á ensku

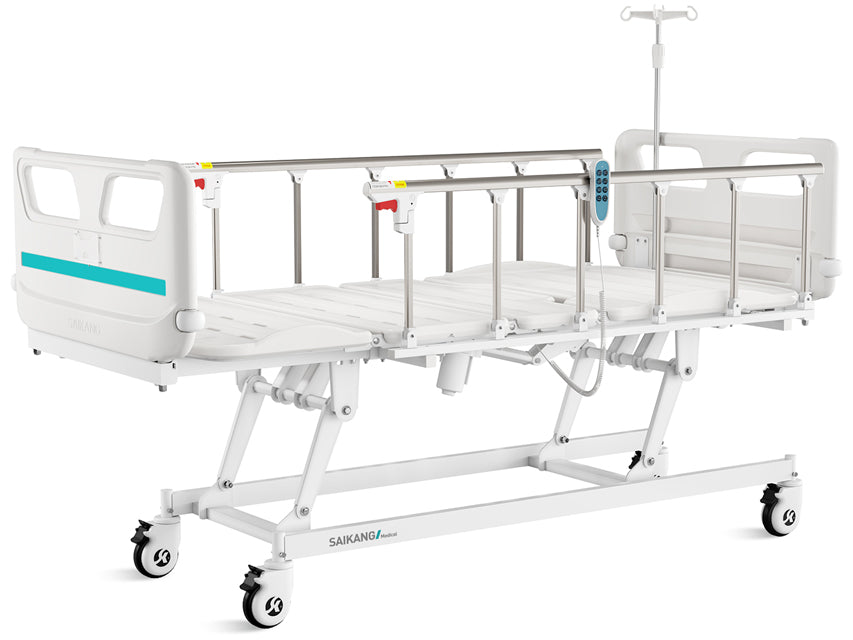

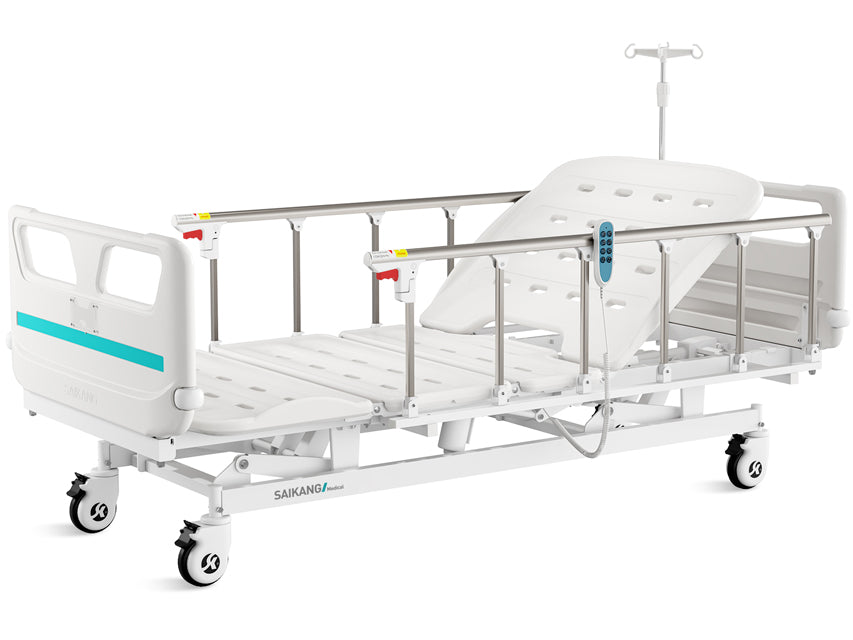

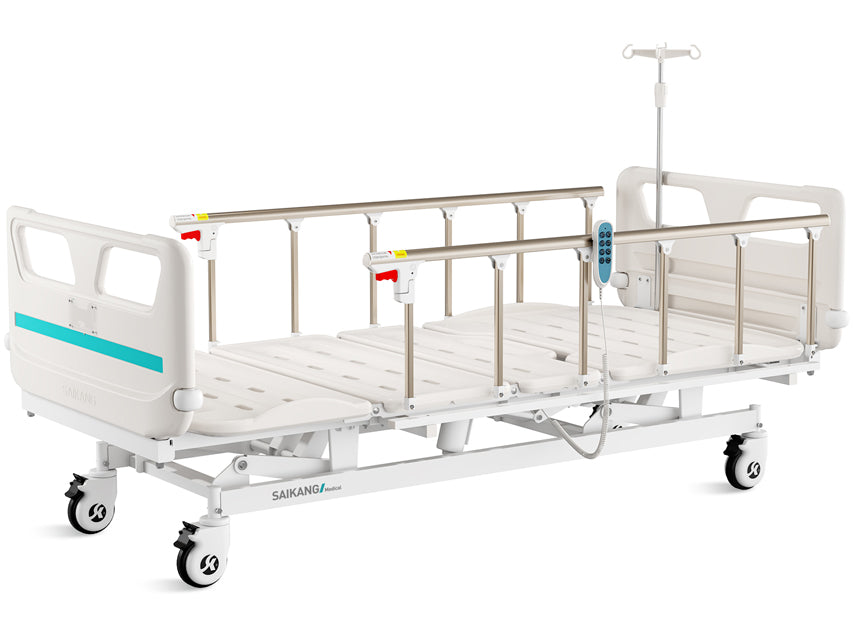

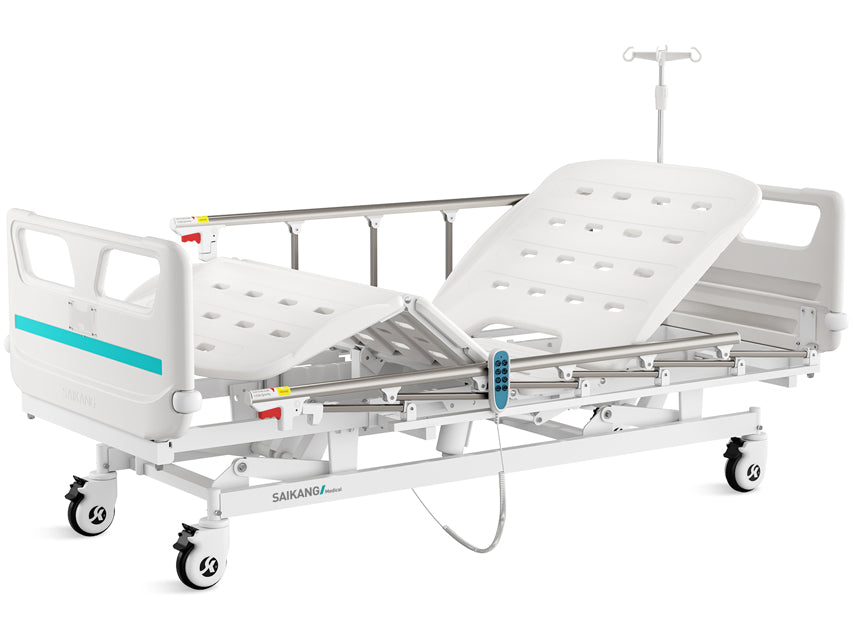

ELECTRIC VARIABLE HEIGHT PATIENT BED
Category: Furniture > Hospital beds, mattresses, bedside tables and furniture > Hospital beds
ELECTRIC PATIENT BED - adjustable height
Electric patient beds with integrated PP bed platform and electric motor to facilitate different movements of bed sections.
Hand controller allows nurses to control standard functions.
Both models have an American motor with UL/ROHS/EN standard.
Plastic parts and epoxy painting.
PP head and foot board equipped with four bumpers wheels Ø 65 mm.
Mattress retainer
Platform integrated mattress retainer on both sides (back and leg section) with a boarder of 33 mm high
Guardrail
Aluminium alloy foldable side rail, 6 staff, collapsed type with safe lock
IV Pole
Stainless steel IV stand, bearing 15 kg
Castors
4 Ø 12.7 cm (5”) anti-winding hard shell covered castors
Hand controller
It allows to adjust bed sections
Bumper wheel
Equipped with 4 bumpers Ø 65 mm to protect bed and wall
Technical data
Size: 208.5x99.5 cm
Height adjustment: from 42 to 73 cm
Mattress platform: 192.5x90 cm
Safe working load: 200 kg
Back-rest adjustment: 0-75° (± 5°)
Knee-rest adjustment: 0-46° (± 5°)
Trendelenburg: -
Reverse Trendelenburg: -
Angle indicator: -
Auto-regression: -
Position line: -
Motor life: 20.000 movements
Motor noise: under 50 dB
Voltage: 100-240 V - 50/60 Hz
Standard accessories
1 hand controller
1 set foldable side rails
1 IV stand with 4 hooks
4 IV pole provisions
2 drainage hooks
Minimum order: 1
Type: Medical device
Class: I
RDM (NSIS): 2549027
CND: V080699
