Lýsing

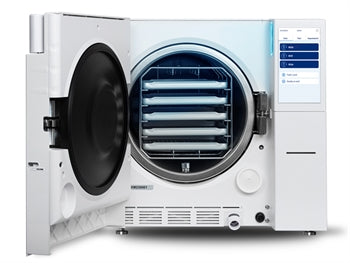

EURONDA E10 autokláfi er háþróaður lækningatæki með 24 lítra rúmtak og 7" snertiskjá. Hann býður upp á fullkomna geymslu og rekjanleika gagna með E-Memory og E-Data hugbúnaði. Autokláfinn er hannaður til að tryggja áreiðanlega sótthreinsun með lágmarks vatnsnotkun og hámarks afköstum.
Tæknileg gögn
| Tegund | Medical device |
| Flokkur (CE) | II B |
| EAN | 8023279356809 |
| CND | Z12011305 |
| GMDN | 38671 |
📄 Hlaða niður gagnablaði (PDF)
Lýsing á ensku
Technical Specifications SOFTWARES E-Memory: archiving, management and traceability of cycles and data on PC E-Data: connection of autoclaves to your management system for recording and tracking data. Windows and iOS compatible E10 TECHNICAL SPECIFICATIONS - Chamber capacity: 24 l - Tray capacity: 700 cm² - Water consumption per cycle: 0.3 l - Vacuum pump capacity: 38 l/min, double head - Tank capacity: 4 l for dirty water, 4 l for clean water - Max. load solid/porous: 6/2 kg - Colour display: 7" - Min. depth of the support surface: 50 cm - Min. width of the support surface: 46 cm - Min. space above the tank: 30 cm - External size: 46x61xh 45.5 cm - Weight: 50.5 kg - Power supply: 230 V 50/60 Hz - Absorption: 2300 W 10 A Cycle: B 121° Pressure: 1.05 bar phase duration: 20 min Drying phase duration: 15 min Total duration with standard load: 40 min (Times are exclusive of the drying phase. The time may vary by ±5%) Max solid/porous load: 6 / 2 kg Cycle: B 134° Pressure: 2.05 bar phase duration: 4 min Drying phase duration: 15 min Total duration with standard load: 24 min (Times are exclusive of the drying phase. The time may vary by ±5%) Max solid/porous load: 6 / 2 kg Cycle: B 134° Prion Pressure: 2.05 bar phase duration: 18 min Drying phase duration: 15 min Total duration with standard load: 37 min (Times are exclusive of the drying phase. The time may vary by ±5%) Max solid/porous load: 6 / 2 kg Cycle: B 134° Fast Pressure: 2.05 bar phase duration: 3 min Drying phase duration: 4 min Total duration with standard load: 23 min (Times are exclusive of the drying phase. The time may vary by ±5%) Max solid/porous load: 0.6 / 0.2 kg Cycle: B 134° Prion Fast Pressure: 2.05 bar phase duration: 18 min Drying phase duration: 4 min Total duration with standard load: 37 min (Times are exclusive of the drying phase. The time may vary by ±5%) Max solid/porous load: 0.6 / 0.2 kg Cycle: N 134° (N cycles can be activated by password provided by Euronda) Pressure: 2.05 bar phase dura
