Lýsing

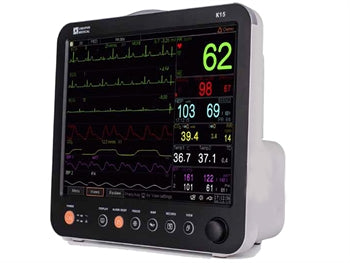

GIMA K15 snertiskjár með 2 IBP og EtCO2 stillingum, fjölþættur skjár fyrir nákvæma eftirlit með lífsmarka. Þessi skjár er hannaður fyrir áreiðanleika og nákvæmni í læknisfræðilegum aðstæðum.
Tæknileg gögn
| Tegund | Medical device |
| Flokkur (CE) | II B |
| EAN | 8023279353105 |
| CND | Z1203020202 |
| GMDN | 33586 |
📄 Hlaða niður gagnablaði (PDF)
Lýsing á ensku
Technical Specifications ECG Input dynamic range: ±(0.5~5 mVp) Differential input impedance: =10 MO Bandwidth: 0.05~150 Hz (Diagnostic), 0.5~40 Hz (Monitoring), 1~20 Hz (Operation) CMRR: =90 dB (Diagnostic) / =105 dB (Monitoring & Operation) Sensitivity selection: ×1/4, ×1/2, ×1, ×2, ×4 and Auto Sweeping speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s HR measuring range: 15~350 bpm ±1% or ±2 bpm, whichever is greater Pacemaker pulse detection and rejection function RESP Measuring range: 0~120 rpm ±5% or ±2 rpm, whichever is greater TEMP Measuring range: 21.0~50.0 °C ±0.2 °C from 25~45 °C NIBP Technique: Oscillometric method Typical measurement time: <30 seconds (adult cuff) NIBP measuring range: SYS: 40~275 mmHg (Adult) / 40~200 mmHg (Pediatric) / 40~135 mmHg (Neonate) NIBP measuring range: DIA: 10~210 mmHg (Adult) / 10~150 mmHg (Pediatric) / 10~95 mmHg (Neonate) NIBP measuring range: MAP: 20~230 mmHg (Adult) / 20~165 mmHg (Pediatric) / 20~110 mmHg (Neonate) NIBP measurement mode: Manual, Auto, STAT, Multi-cycle mode NIBP measuring accuracy: Mean difference: ±5 mmHg Standard deviation: 8 mmHg Auto measuring intervals: 1-480 min SpO2 Technique: Dual-wavelength optical method Measuring range: 0%~100% ±2% for SpO2 range 70~100% PR measuring range: 30~250bpm ±2bpm or ±2%, whichever is greaterLow perfusion performance: As low as 0.3%. EtCO2 (needs 33796 or 33797) Technique: Infrared optical method Sampling mode: Sidestream or Mainstream Measuring range: 0~150 mmHg Measuring accuracy: 0~40 mmHg ±2 mmHg; 41~70 mmHg ±5%; 71~100 mmHg ±8%; 101~150 mmHg ±10% Flow rate: 50 ml/min ±10 ml/min (Sidestream) IBP Technique: Strain gauge transducer Input sensitivity: 5 µV/V/mmHg Measuring range: -50~300 mmHg ±2% or ±4 mmHg, whichever is greater Measuring positions: ART, RAP, PA, LAP, CVP, ICP, AUXP1, AUXP2 Calibration: zero calibrating Other Specifications Power supply: AC 100-240 V, 50/60 Hz, 60 VA Built-in lithium battery: 11.1V/4400 mAh Display: 12 or 15 inch TFT display Alarming met
