GIMA Vital Pro skjárinn er fjölvirkur skjár sem veitir nákvæmar mælingar á lífsmarkum. Hann er hannaður fyrir fagfólk í heilbrigðisþjónustu og býður upp á fjölbreyttar mælingar á blóðþrýstingi, súrefnismettun, púls og hjartalínuriti.
- Oscillometric mæliaðferð fyrir blóðþrýsting
- Handvirkur, sjálfvirkur og STAT mælingarmáti
- Stórt mælisvið fyrir blóðþrýsting og súrefnismettun
- Rafhlöðuaflgjafi fyrir hreyfanleika
Tæknilegar upplýsingar
- Blóðþrýstingsmæling: oscillometric
- Mælisvið fyrir blóðþrýsting: Fullorðnir 40-275 mmHg, Börn 40-200 mmHg, Nýburar 40-135 mmHg
- Súrefnismettun: 35% ~ 100%, nákvæmni 3% fyrir 70-100% svið
- Púlsmæling: 30 ~ 240 bpm, nákvæmni ± 2 bpm eða ±2%
- Hjartalínurit: 15 ~ 130 bpm, nákvæmni ± 1% eða ±2 bpm
Hentar fyrir
Sjúkrahús, Heilsugæslu, Læknastofur
Afhending
Afhendingartími: 6–8 virkir dagar
Vörulýsing á ensku

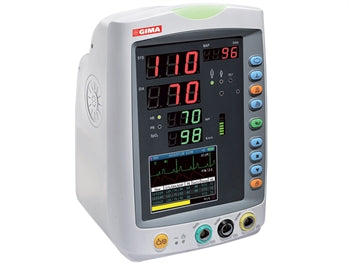

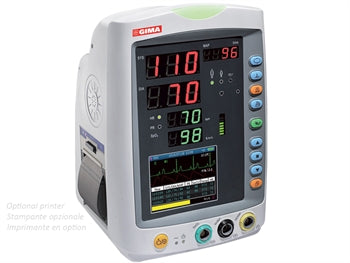

GIMA VITAL PRO MONITOR
"Vital Signs" is a line of small multi-parameter patient monitors, which can monitor the vital physiological parameters: non-invasive blood pressure (NIBP), pulse oxygen saturation (SpO2), electrocardiogram (ECG) and temperature (TEMP).
Features:
- 3.5" LCD display for remote review
- history data records reviewed in waveform, list and trend graph
- USB connection for data output and software upgrade
Technical data
NIBP
Measuring method: oscillometric
Measurement mode: Manual, Auto, STAT
Measurement range:
Press SYS mmHg: (Adult 40-275) (Pediatric 40-200) (Neonate 40-135)
Press MAP mmHg: (Adult 20-230) (Pediatric 20-165) (Neonate 20-110)
Press DIA mmHg: (Adult 10-210) (Pediatric 10-150) (Neonate 10-95)
SpO2
SpO2 measurement range: 35% ~ 100%
SpO2 measurement accuracy: 3% for range from 70 to 100%
Low perfusion performance: as low as 0.4%
Pulse rate
Measurement range: 30 ~ 240 bpm
Measurement accuracy: ± 2 bpm or ±2%, whichever is greater
ECG
Heart rate display range: 15 ~ 130 bpm
Heart rate display accuracy: ± 1% or ±2 bpm, whichever is greater
Heart rate alarm delay time: = 10s
sensitivity selection: x1/4, x1/2, x1, x2
Sweeping speed: 25 mm/s
Temperature
Measuring range: 21-50°C
Measuring accuracy: ±0.2°C for range 25-45°C
Other Technical Specifications
Power supply: 100-240 VAC, 50/60 Hz
Battery: 11.1 V, 4,400 mAh (Li-ion Battery)
Standard accessories
• Adult SpO2 probe
• NIBP adult cuff
• Temperature probe - skin type
• ECG cable + 10 ECG electrodes
• Lithium rechargeable battery
• Power supply cable
• Dust protective mantle
• Manual (GB, FR, IT, ES)
Minimum order: 1
Type: Medical device
Class: II B
RDM (NSIS): 1710880
CND: Z1203020201
PARAF: 977815479
