Fjórskipt sjúkrarúm með rafknúinni stillingu á hæð og botni, ásamt Trendelenburg og öfugri Trendelenburg (15°). Bakið er stillt með rafknúnum stýribúnaði með vörn gegn klemmu á kvið.
Á báðum hliðum eru handföng fyrir endurlífgun (CPR) í neyðartilvikum. Rúmið er framleitt á Ítalíu og allir stálhlutar eru epoxýhúðaðir.
- Stærð 110 x 225 cm, hæð flatar 380–780 mm
- Bak upp í 71°, fótahluti upp í 30°, Trendelenburg 15°
- Fjögur 150 mm hjól með miðlægri bremsu
- Hliðargrindur úr tæknifjölliðu
- IP66, 160–230 V
- Þyngd rúms 130 kg
Helstu upplýsingar
- GIMA-vörunúmer 44800
- Sölueining: 1 stk.
Afhending
Afhendingartími: 6-8 virkir dagar.
Skjöl og nánari upplýsingar
- Skjal 1 (PDF)
- Skjal 2 (PDF)
- Skjal 3 (PDF)
- Skjal 4 (PDF)
- Skjal 5 (PDF)
- Skjal 6 (PDF)
- Skjal 7 (PDF)
- Skjal 8 (PDF)
Vörulýsing á ensku
HEIGHT ADJUSTABLE ELECTRIC BED - load 230 kg
Category: Furniture > Hospital beds, mattresses, bedside tables and furniture > Hospital beds

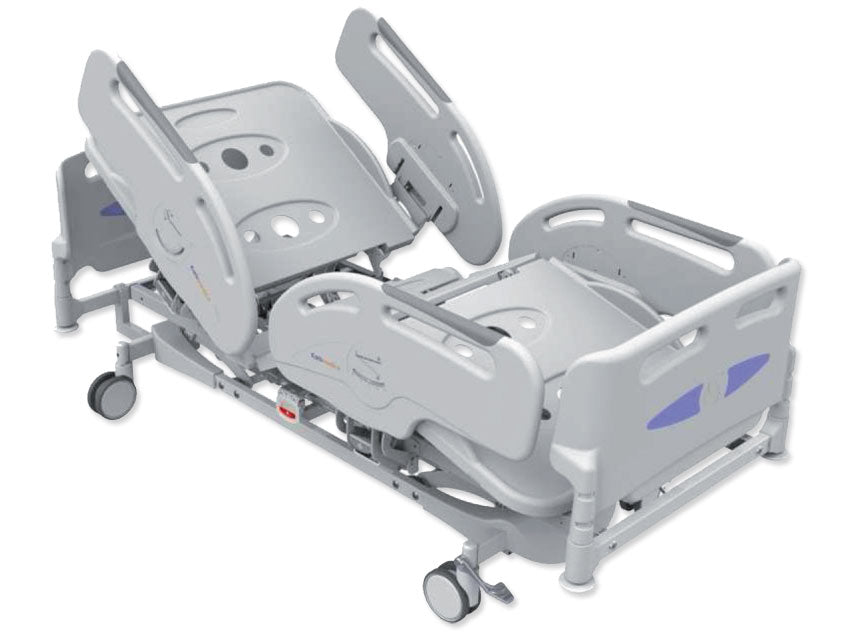

HEIGHT ADJUSTABLE ELECTRIC BED
3 joint, 4 section Hospital bed, with electronic adjustment of height and platform, Trendelenburg and Reverse Trendelenburg positions (15°).
All steel components are epoxy-coated.
Back section regulation using electric actuators with anticrushing and rototranslation function to avoid abdominal crushing.
Both bed sides have CPR manual levers for emergency manoeuvres.
Foot rest adjustment by click mechanisms allowing 6 positions.
Remote control to maintain position or disable.
The keypad allows adjustment of backrest, bed surface height, legs and foot rest, comfort position, TR and RTR
Made in Italy.
Bed weight: 130 kg
Size: 110x225xh 91 cm
4 castors Ø 150 mm with central brake system with directional control
Compartments for patient lift bar and IV probe
4 containing sector side rails, made of technopolymer, and single collapsible
Moulded removable head and foot boards with integrated handle useful for movements
Technical data
Minimum/maximum height surface: 380-780 mm
Maximum backrest regulation: 71°
Maximum leg/foot height regulation: 30°
Trendelenburg/reverse trendelenburg: 15°
Minimum/maximum height: 835-1245 mm
Maximum total width/length: 1010/2260 mm (bumpers and siderails included)
Worksurface width/length dimension 880/2000 mm
Power supply: 160-230 V - 50-60 Hz
SWL: 270 kg
IEC protection class: I / B
IP code (protection rating): IP66
Minimum order: 1
Type: Medical device
Class: I
RDM (NSIS): 2322647
CND: V08060101
PARAF: 987475466
