Mindray BeneHeart R300 er háþróað hjartalínuritstæki sem veitir nákvæmar og áreiðanlegar niðurstöður. Það er hannað fyrir fagfólk í heilbrigðisþjónustu og er auðvelt í notkun.
- Framúrskarandi nákvæmni
- Auðvelt í notkun
Hentar fyrir: Sjúkrahús, Heilsugæslu, Læknastofur
Vörulýsing á ensku

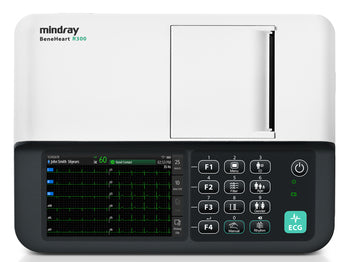

MINDRAY BENEHEART R300 ELECTROCARDIOGRAPH
MINDRAY BENEHEART R300 ELECTROCARDIOGRAPH 3 channels
Lightweight portable cardiograph for resting ECG diagnosis with Wi-Fi connection.
Reliable analysis - Glasgow algorithm
R300 supports both the University of Glasgow 12-lead ECG analysis program and Mindray 12- lead resting ECG analysis algorithm for adults and paediatrics, both of which provide accurate and reliable analysis references to give you more confidence in diagnosis.
Great portability and clear display
It weighs only 1.28 kg with battery, easy to carry. 5” clear colour display offers the highest resolution.
Convenient operations
ECG recording is automatically unfolded on the writing pad at the top of the unit for notes or signature. It provides report preview, re-analysis and E-report transmission. 10 hours of paperless recording.
Unique recorder - Z-folded or rolling paper
Compatible with both rolling paper and Z-fold paper.
The Glasgow algorithm is based on specific variables, including age, gender, race, medication, and class in order to maximize the accuracy of the ECG interpretation. The report may highlight one or several “critical value warnings” to alert medical attendants of findings that need immediate attention.
Technical data
ECG
Operating mode: continuous
Measurement mode: Auto, Manual, Rhythm
Lead: 12 leads
ECG analysis: 64000 samples/second (sps)
PACE sampling rate: 96000 samples/s (A/D)
Frequency response: 0.01 Hz to 500 Hz
Filters:
EMG filter: 20 Hz, 35 Hz, Off
Baseline filter: 0.01 Hz, 0.05 Hz, 0.56 Hz
Lowpass filter: 150 Hz, 270 Hz, 350 Hz
CMRR:≥ 123 dB (notch filter off ), ≥ 140 dB (notch filter on)
Input signal range: ±10 mV (peak-to-peak value), at 1.25 mm/mV sensitivity
Sensitivity: auto, 1,25 mm/mV, 2,5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV, 10/5 mm/mV, 20/10 mm/mV, (± 5%)
Input impedance: ≥ 100 MΩ (10 Hz)
Heart rate range: 30 to 300 bpm, ±1% or ±1bpm
Display: 5" TFT colour LCD display, 800x480 pixels resolution
Display data: patient ID, name, gender, age, heart rate, pacemaker, warning messages, information messages, time, battery indicator, network, waveforms, lead labes, pace annotations, speed, gain rechargeable Lithium-ion
Power supply: battery 10.95 V, 2,600 mAh
Battery autonomy: 500 auto reports or 2 hours of continuous paper recording
Charging time: 3.5 hours with power off
Operating voltage: 100-240 V - 50/60Hz
Size - weight: 270x210x60 mm - 1.28 kg
Protection: Class I, IP20
Software
Resting ECG mode: Records and prints 12-lead resting ECG with 10-second duration
Patient information: Patient ID, secondary ID, age, date of birth, gender, race, medication class and V3 electrode placemen 1200 ECGs
Printer
Printing method: high-resolution thermal recorder
Printing resolution: vertical resolution: 8 dots/mm horizontal resolution: at least 32 dots/mm (25 mm/s paper speed), or 16 dots/mm (50 mm/s paper speed)
Paper speed: 5 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s.
Standard accessories
Cable with banana plugs, IEC
Limb clamp set of 4
Chest bulb set of 6
Rechargeable battery
1 roll paper
User manual in: GB, FR, DE, HU, IT, PL, ES, TR
Glasgow algorithm and software in: GB, FR, IT, ES, DE, PL, PT, TR, RU, HU, RO, CZ, CN
Minimum order: 1
Type: Medical device
Class: II A
RDM (NSIS): 2775948
CND: Z12050301
