Lýsing

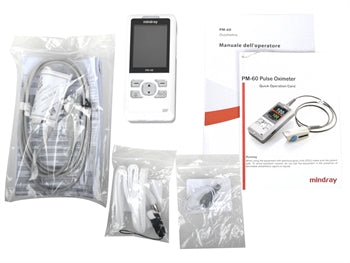

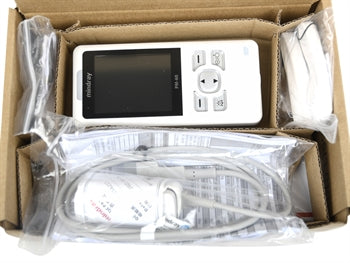

MINDRAY PM-60 Pulse Oximeter mælir SpO2 í 0~100% ±2% (70~100%). Tækið er með LCD litaskjá og ýmsum stillingum. Hentar vel fyrir sjúkrahús og klíníska notkun.
Tæknileg gögn
| Tegund | Medical device |
| Flokkur (CE) | II B |
| EAN | 6944904008189 |
| CND | Z1203020408 |
| GMDN | 17148 |
📄 Hlaða niður gagnablaði (PDF)
Lýsing á ensku
Technical Specifications SpO2 Measurement range: 0~100% ±2% (70~100%) Resolution: 1% Alarm range: 50~100% Averaging time: 7 s (sensitivity set HIGH) / 9 s (sensitivity set MED) / 11 s (sensitivity set LOW) Pulse rate Range: 18~300 bpm (±3 bpm non-motion) (±5 bpm motion) Resolution: 1 bpm Alarm range: 18~300 bpm Averaging time: same as SpO2 Device Display: 2.4“ colour TFT Resolution: 320x240 Selectable: standard or waveform screen Trace: 1 plethysmogram waveform Indicator: alarm indicator light, power indicator light, pulse tone, alarm sound, button tones Interface: dual-purpose socket for connecting SpO2 sensor and communication cable IR interface: infrared link allows downloading realtime patient data to computer DC power: input voltage 5V DC Power 1.2A interface: charger stand for Li-ion battery Battery: Li-ion battery 24 hours continuous working 3xAA batteries 36 hours continuous working Trend memory: Monitoring mode: Resolution: 2s Maximum time: 96 h Spot-check mode: Review of up to 4,000 data Measure up to 99 patients Alarm: user adjustable high and low limits 3-level audible and visual alarm Protection: Class II with internal electric power supply Degree of protection: BF (defibrillation proof), IPX 2 (liquid)
