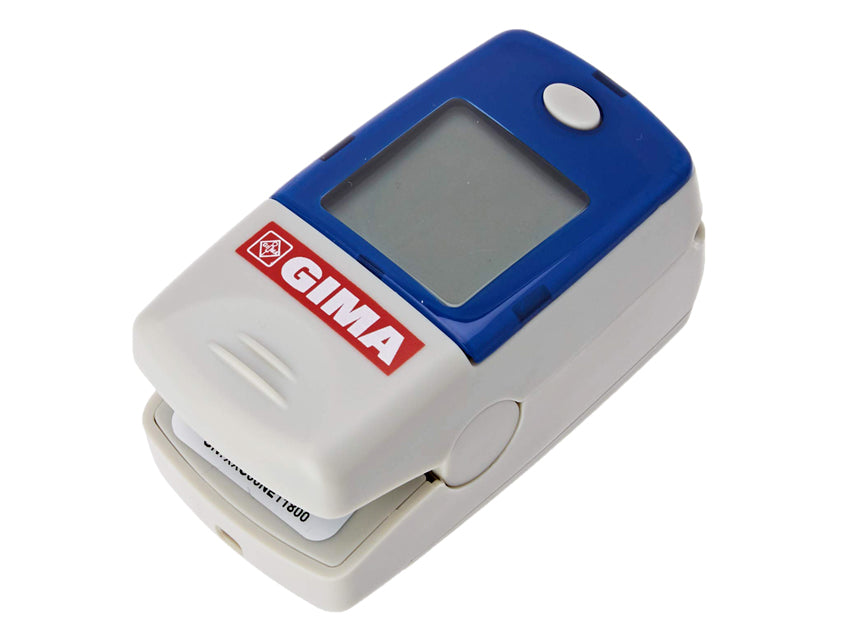

OXY-5 er súrefnismettunarmælir á fingur fyrir börn sem mælir súrefnismettun (SpO2) og púls. Hann hentar fingrum 8–16 mm og er ætlaður til notkunar á heilbrigðisstofnunum.
Mælirinn gefur nákvæma mælingu á nokkrum sekúndum, er stöðugur gegn hreyfingum og kveikir og slekkur á sér sjálfkrafa. Hann kemur í plastöskju með rafhlöðum og poka.
- Fyrir fingur 8–16 mm
- Mælir SpO2 (35–99%) og púls (30–240 slög/mín.)
- Sýnir gegnflæðistuðul (PI) og púlsstiku
- Viðvörun við SpO2 undir 90%
- Um 50 klst. notkun á rafhlöðum, 60 g
- Lækningatæki í flokki IIa
Helstu upplýsingar
- GIMA-vörunúmer 34265
- Sölueining: 1 stk.
Afhending
Afhendingartími: 6-8 virkir dagar.
Skjöl og nánari upplýsingar
- Skjal 1 (PDF)
- Skjal 2 (PDF)
- Skjal 3 (PDF)
- Skjal 4 (PDF)
- Skjal 5 (PDF)
- Skjal 6 (PDF)
- Skjal 7 (PDF)
- Skjal 8 (PDF)
Vörulýsing á ensku
OXY-5 PAEDIATRIC FINGER OXIMETER
Category: First aid & emergency > Finger Oximeters
To monitor pulse oxygen saturation and pulse rate through patient’s finger (8-16 mm finger) in medical and hospital environments.
Main features:
- SpO2 and pulse rate measurement
- bargraph of pulse rate
- perfusion index display. P.I. is a numerical value that indicates the blood perfusion condition at the sensor site. It is a relative value that varies from patient to patient and from measuring site
- high accuracy and repeatability: products are manufactured by GIMA (in P.R.C. facilities) under strong quality controls guaranteed by Italian notified body (CE 0476 CERMET)
- accuracy from the first reading in few seconds thanks to a unique noise rejecton capability feature
- extra stability against motion during measurement (finger bending, Parkinson's disease, hand movement, button pressing)
- automatic power on and power off when finger is out
- low voltage alarm display
- 9 language manual (GB, FR, IT, ES, DE GR, PT, Arabic)
- 50 hours working time with full batteries
- supplied in plastic case with batteries and pouch
Technical data
• Pulse rate:
- range: 30-240 bpm
- accuracy: ± 2 bpm (2%)
- resolution: 1bpm
• SpO2:
- range: 35%-99%
- accuracy: ± 2% (75-99%)/± 3% (50-75%)
- resolution: 1%
• Perfusion: Index:
- range: 0-20%
- accuracy: ± 0.1% (0.2-2%)/± 0.2% (2-10%)
- resolution: 0.1%
• Alarm: SpO2: low limit 90%
• Pulse rate: low: < 50 bpm - high > 120 bpm
• Power: 1.5V (AAA size) alkaline battery x 2
• Norms: IEC 60601-1-2 Class II
• LCD Display: oxygen saturation, pulse rate, low battery indicator
• Size: 6.6 x 3.6 x 3.3 cm
• Weight: 60 g including batteries
• Italian manufacturer (made in P.R.C)
Minimum order: 1
Type: Medical device
Class: II A
RDM (NSIS): 237641
CND: Z1203020408
GMDN: 45607
PARAF: 983782020
