Lýsing

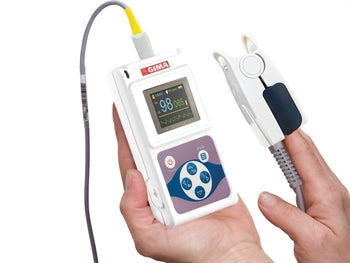

OXY-50 PULSE OXIMETER er háþróaður súrefnismælir. - TFT skjár, SpO2: 2 tölustafir, púls (PR): 3 tölustafir, púls styrkur: bar-graf. Mælingar á púls: 30 ~ 250 bpm. Nákvæmni: ±2 bpm eða ±2%. Hugbúnaður fyrir gagnastjórnun.
Tæknileg gögn
| Tegund | Medical device |
| Flokkur (CE) | II A |
| EAN | 8023279351002 |
| CND | Z1203020408 |
| GMDN | 45607 |
📄 Hlaða niður gagnablaði (PDF)
Lýsing á ensku
Technical Specifications Display mode (TFT display) SpO2: 2 digits Pulse rate (PR): 3 digits Pulse intensity: bar-graph Pulse rate Measuring range: 30 ~ 250bpm Resolution: 1 bpm Accuracy: ±2bpm or ±2% Average pulse rate: Moving calculate the average pulse rate every 4 cardio-beat's cycle. Deviation between average value and true value does not exceed 1% Pulse intensity range: Continuous bar-graph display, the higher display indicates the stronger pulse SpO2 Measuring range: 0~100%, (resolution 1%) Accuracy: 70~100%: ±2% Average value: Calculate the average value every 4 measure value. Deviation between average value and true value does not exceed 1% Power supply: DC 3V, < 100 MA Battery: dry battery (2AA) Oxymeter probe: wavelength: 660 - 905 nm Dimension: 110(L)x60(W)x23(H) mm Weight: about 120g (with dry battery 2AA) Safe type: BF Type
