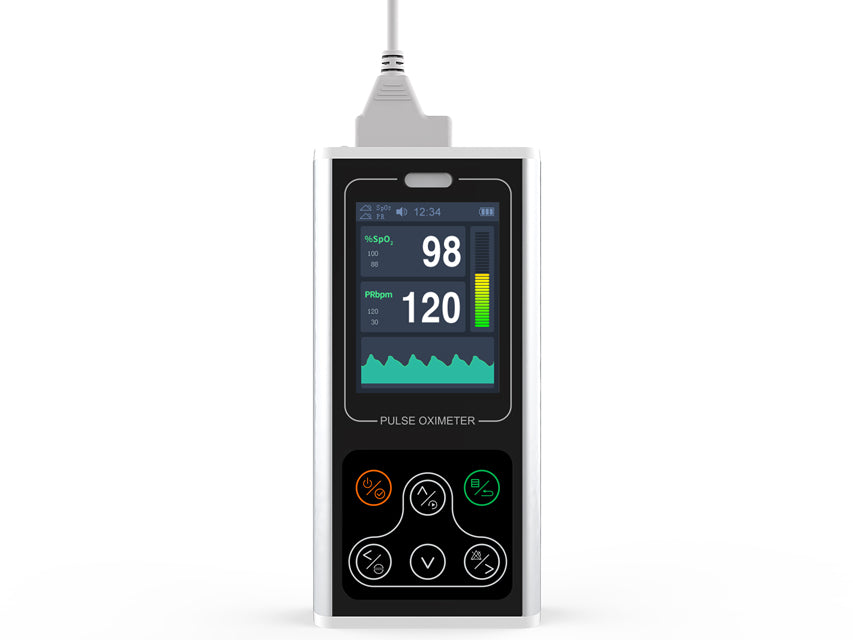

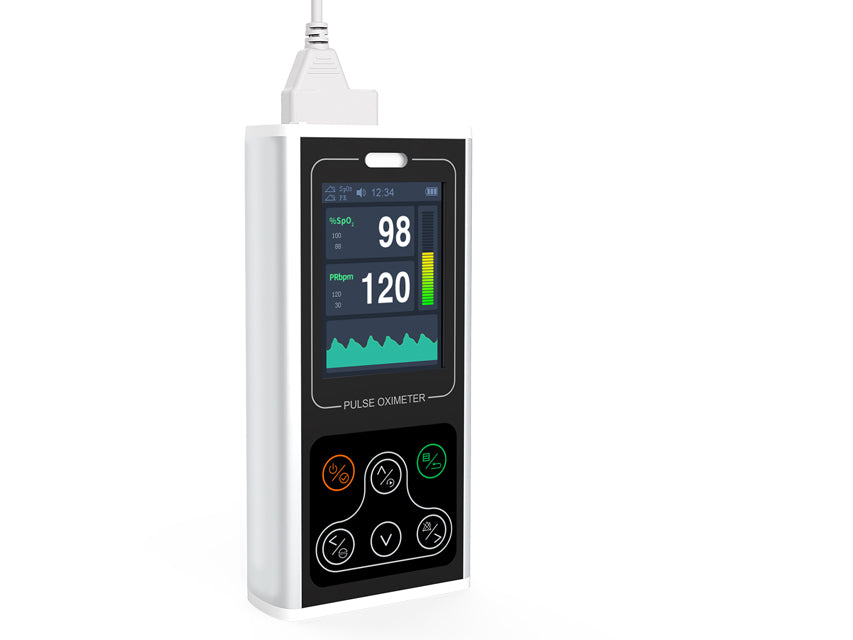

OXY-55 er handhægur súrefnismettunarmælir til stakra mælinga eða samfelldrar vöktunar á SpO2 og púls hjá fullorðnum, börnum og nýburum, bæði heima og á sjúkrahúsi.
Mælirinn sýnir SpO2, púls, súlurit, púlsbylgju og PI-gildi á 2,8" litaskjá. Gögn eru vistuð og hægt er að flytja þau yfir í tölvu.
- 2,8" litaskjár (240x320)
- SpO2 0–100% (±2%), púls 30–250 slög/mín.
- Viðvörun þegar fingur fer úr nema eða gildi fara út fyrir mörk
- Ryk- og vatnsvarinn
- Fylgir: SpO2-nemi fyrir fullorðna, hleðslutæki, endurhlaðanleg rafhlaða, USB-snúra og hugbúnaður
Helstu upplýsingar
- GIMA-vörunúmer 35048
- Sölueining: 1 stk.
Afhending
Afhendingartími: 6-8 virkir dagar.
Skjöl og nánari upplýsingar
- Skjal 1 (PDF)
- Skjal 2 (PDF)
- Skjal 3 (PDF)
- Skjal 4 (PDF)
- Skjal 5 (PDF)
- Skjal 6 (PDF)
- Skjal 7 (PDF)
- Skjal 8 (PDF)
Vörulýsing á ensku
OXY-55 PULSE OXIMETER with software
Category: First aid & emergency > Pulse Oximeters and capnography units > Pulse Oximeters
OXY-55 PULSE OXIMETER with software
Oxy-55 is a non-invasive hand-held pulse oximeter intended for the spot-check or continuous monitoring of SpO2 and the pulse rate of adult, paediatric, and neonate patients through the finger in home and hospital environments. It adopts Photoelectric Oxyhemoglobin Inspection Technology integrated with Capacity Pulse Scanning & Recording Technology. It displays SpO2 value, pulse rate value and bar graph, pulse waveform, and PI value.
- Adjustable screen brightness and sound volume
- 2.8” colour display
- Robust and durable external design
- Clock, review, and menu function
- Alarm function when finger is out or out of limit
- Storage function for SpO2 and PR values, stored and real-time data can be uploaded to PC
- Dustproof and waterproof
Supplied with adult SpO2 probe, power adaptor, rechargeable battery, USB cable, software, and user manual in GB, FR, IT, ES.
Technical data
SpO2
Measuring range: 0~100%; ±2%
Resolution: 1%
PR
Measuring range: 30~250 bpm
Accuracy: 3099 bpm: ±2 bpm, 100250 bpm: 2%
Resolution: 1 bpm
Perfusion Index
Measuring range: 0~20%
Accuracy: 120%: ±1%; 00.9%: ±0.2%
Resolution: 0.1%
Display: 2.8" colour screen, 240x320 resolution
Alarm range: SpO2: 0~100%; PR: 0 ~ 254 bpm
Red light: wavelength: about 660 nm, optical output power: < 6.65 mW
Infrared light: wavelength: about 905 nm, optical output power: < 6.75 mW
Memory: up to 99 groups of data under auto mode, max. 72 hours. Up to 24-hour data under manual mode.
Power supply: rechargeable lithium battery, 3.7 V, DC 5V output, 1000 mA
Battery life: 500 times
Working time: 72 hours
Size - weight: 159x72x31 mm - 250 g (battery included)
Protection: Class II, type BF applied part, IP22
Minimum order: 1
Type: Medical device
Class: II B
RDM (NSIS): 2964330
CND: Z1203020408
