Pentaled 30E er nett hátækni skurðstofuljós á hjólastandi sem gefur 160.000 lux. Það hefur 30 sporöskjulaga spegla í 6 einingum með 5 LED-ljósum hver og skurðlæknirinn getur valið milli 4.500 og 5.000 K litahita.
E-view linsa stækkar eða minnkar lýsta svæðið rafrænt án þess að breyta ljósstyrk og óbeinu LED-ljósin skapa skuggalausa þrívíddarlýsingu án glýju.
- 160.000 lux í 1 m fjarlægð
- Litahiti 4.500–5.000 K, CRI Ra 96
- Ljóssvæði stillanlegt 14–26 cm
- Meðalending LED 60.000 klst.
- Langur armur (985 mm)
- Lækningatæki í flokki I
Helstu upplýsingar
- GIMA-vörunúmer 30780
- Sölueining: 1 stk.
Afhending
Afhendingartími: 6-8 virkir dagar.
Skjöl og nánari upplýsingar
- Skjal 1 (PDF)
- Skjal 2 (PDF)
- Skjal 3 (PDF)
- Skjal 4 (PDF)
- Skjal 5 (PDF)
- Skjal 6 (PDF)
- Skjal 7 (PDF)
- Skjal 8 (PDF)
Vörulýsing á ensku

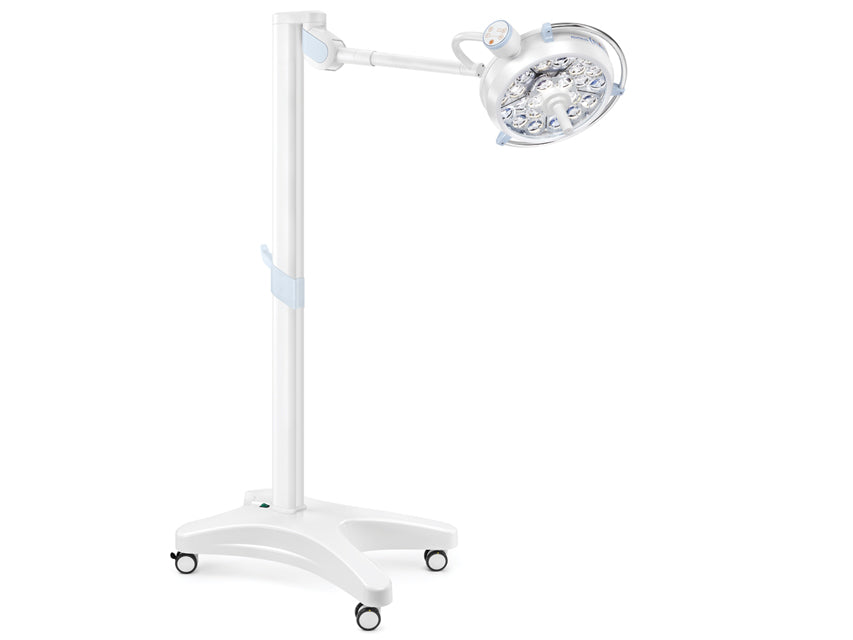

PENTALED 30E SCIALYTIC LIGHT - trolley
Category: Medical lights > LED Theatre lights
Pentaled 30E - mobile - 160,000 Lux

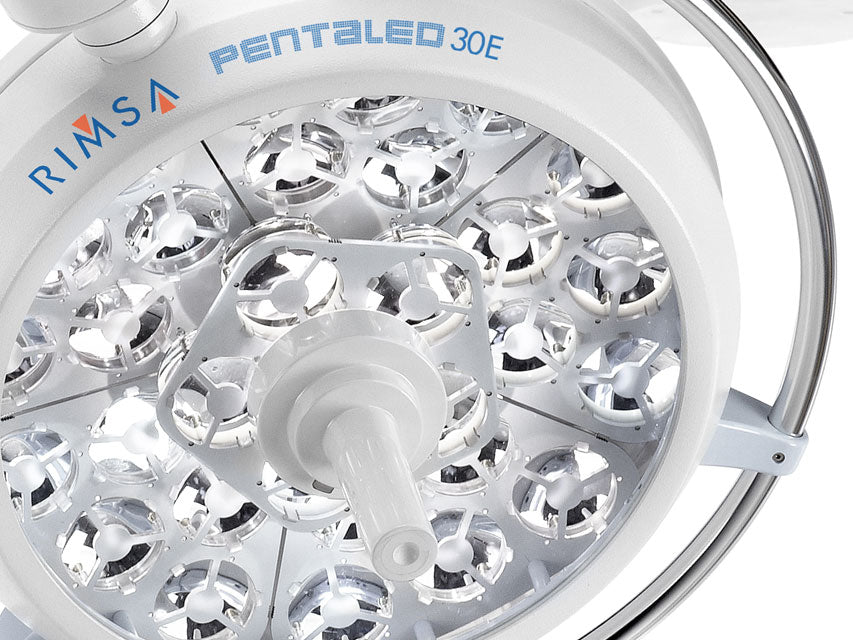

A compact size hi-tech product that guarantees great performance levels. It has 30 elliptical reflectors split into 6 modules each containing 5 LEDs, providing 160,000 LUX
- selectable 4,500 °K - 5,000 °K by pressing the digital key, the urgeon can choose two different white light temperatures
- E-view: innovative lens allows to expand/narrow the illuminated perating field electronically, without altering intensity of light.
- E-comfort: the indirect LEDs creates 3D shadowless llumination of the operating field, no risk of dazzling
- E-white: only white LEDs to avoid risk of perception of colour temperature variations or coloured shadows
- E-deep: centre of light is fitted with extra LEDs module specifically designed to reflect deep light for perfect 3D lighting.

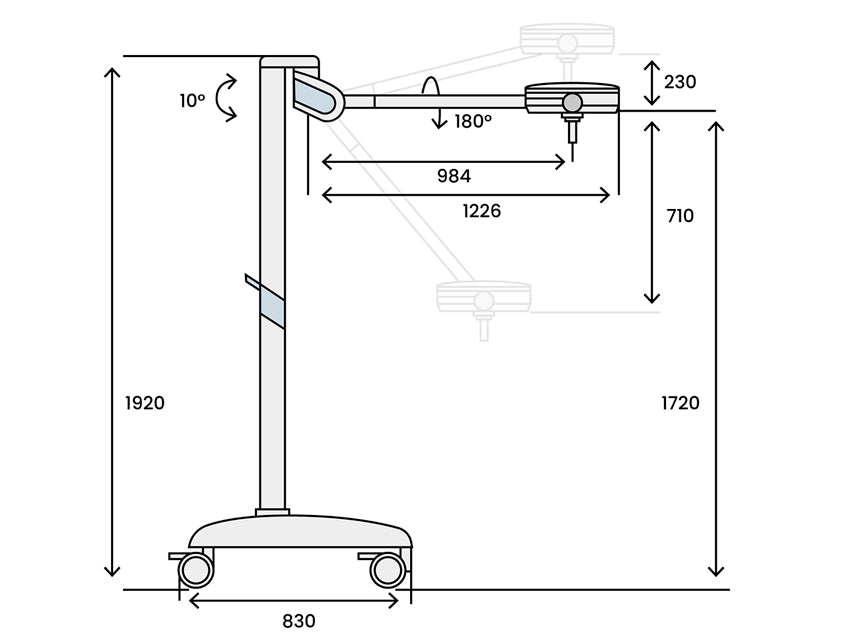

Battery and high definition camera on request: battery group with automatic charger (4 hours autonomy). Long arm (985 mm) for optimal positioning.
Complies with EU 2017/745 Class I - MD.
Technical data
Adjustable light intensity at 1 m distance (Ec) 160 Klx
Colour temperature - switchable 4,500 to 5,000 °K
Colour rendering index (CRI) Ra 96
Light field (electronically adjustable) 14-26 cm
Light field Ø where illuminance reaches 10% of Ec (d10) 210 mm
Light field Ø where illuminance reaches 50% of Ec 80 mm
Total radiated energy Ee where illumination reaches max level 627 W/m2
Average LED life 60,000 hours
Power supply: 100-240 V - 50-60 Hz - 60 VA
Regulations: IEC 60601-2-41 - EU 2017/745
Minimum order: 1
Type: Medical device
Class: I
RDM (NSIS): 2395107
CND: Z12010702
GMDN: 12282
