Lýsing

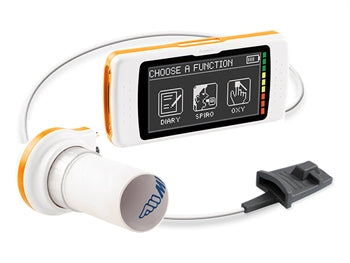

SPIRODOC spirometri og oximetri með hugbúnaði er fullkomið tæki fyrir nákvæma mælingu á lungnastarfsemi og súrefnismettun. Það er með LCD skjá og er auðvelt í notkun.
Tæknileg gögn
| Tegund | Medical device |
| Flokkur (CE) | II A |
| EAN | 8023279335347 |
| CND | Z12150102 |
| GMDN | 46906 |
📄 Hlaða niður gagnablaði (PDF)
Lýsing á ensku
Technical Specifications Central unit Display: LCD backlit touch screen display 128x64 pixels Power supply: Lithium ion 3.7 V, 1100 mA rechargeable battery with 50 hours measurement back up Accelerometer: Triaxial ±2 g, 400 Hz sampling Size - weight: central unit 101x48x16 mm, 99 g / removable turbine head: 46x47x24 mm, 17 g Spirometry Flow sensor: Bi-directional digital turbine, range: ±16 L/s Volume accuracy: ±2.5% or 50 mL, whichever is greater Flow accuracy: ±5% or 200 mL, whichever is greater Dynamic resistance at 12 L/s: <0.5 cm H2O/L/s Temperature sensor: semiconductor (0-45°C) Spirometer measured parameters FVC, FEV1, FEV1/FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, PEF, FEF25%, FEF50%, FEF75%, FEF25%-75%, FET, Estimated Lung Age, Extr. Vol., FIVC, FIV1, FIV1/ FIVC%, PIF, VC, IVC, IC, ERV, FEV1/VC%, VT, VE, Rf, ti, te, ti/t-tot, VT/ti, MW measured, MW calculated Oximetry SpO2 range: 0 -99%, ±2% (70-99% SpO2) Pulse rate range: 30-254 BPM, ±2 BPM or 2% Pulseoximeter measured parameters All test SpO2%MIN, SpO2%MEAN SpO2%MAX, BPM MIN, BPMMEAN, BPM MAX, Ttotal, Tanalysis, T<90%, T<89%, T<88%, T<87%, EvSpO2%<89, ?Index, T<40BPM, T>120BPM, Ev<40BPM, Ev>120BPM Sleep test SpO2%BASE, BPMBASE, ODI, Mean Dur. Desat., TotDesaturat., Longest Desat., Desatur. Peak, BPM Index, Mean Desaturat., Mean Drop, Max Drop, BPM Variation, NOD4%, NOD89%, NOD90%, t.NOD4%, t.NOD89%, t.NOD90% Record of body position 6MWT test SpO2%, BPM, Tbaseline, Twalking, Trecovery, Distance, T2%?SpO2, T4%?SpO2, Predicted, %Predicted, AUC/Distance, Dyspnea, Dyspnea CHG, Fatigue, Diastolic, Systolic, Steps, VMU, O2-GAP, O2
