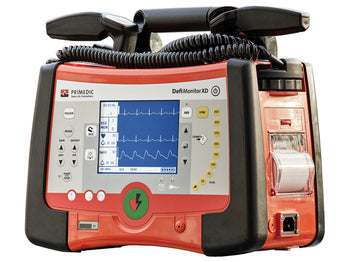

DefiMonitor XD er öflugt hjartastuðtæki sem býður upp á bæði handvirka og sjálfvirka virkni. Það er hannað til að veita áreiðanlega hjartastuðmeðferð með háþróaðri tækni.
- Hjartastuðbylgja: tvífasaskipt, straumstýrð púls
- Orka (sjálfvirk stilling): 140-360 J
- Handvirk orkustig: 5J, 10J, 20J, 30J, 50J, 100J, 200J, 300J, 360J
- Hleðslutími: < 6 sek við 200 J
- Rafhlöðuending: 160-200 J
- Rafhlöðutegund: Lithium-ion, 2.5 Ah
- Rafhlöðu hleðslutími: 3.2 klst
- Skjár: TFT LCD, 320x240 pixlar
- Samhæfi við AHA/ERC staðla
Hentar fyrir
Sjúkrahús, Sjúkraflutninga, Björgunarsveitir
Lýsing á ensku (Original English)
Technical Specifications Defibrillation Wave: biphasic, current controlled impulse Energy (automatic mode) 140-360 J Manual energy stages: 5J, 10J, 20J, 30J, 50J, 100J, 200J, 300J, 360J Charging time: < 6 sec at 200 J Cardio version: manual activation, QRS marker ECG Derivation: Eindhoven I, II, III Goldberger, aVR, aVF, aVL Patient's resistance: 23-200 Ohm Heart rate: 30-300 per min VF: recogniton VF recogniton Analysis time 7-12 sec VF threshold 200 µV Asystole threshold < 200 µV Artefact, Pacemaker detection Thermal printer Resolution: 200 dpi Advance: 25 mm/s, 50 mm/s TFT LCD blue-mode monitor 115x86 mm (diagonal 5.7"/144 mm) 320x240 pixels Electrodes Adhesive electrodes, 3 years shelf life Cable length 3.5 m Save pads connect Data backup Removable memory 2 GB Data/Voice recording up to 35 h Power supply Voltage 90-264 V, 50/60 Hz Rechargeable Lithium-ion battery: Capacity 2.5 Ah Voltage: 13.2 Vdc Discharges 160-200 J Monitoring 5.30 h Charging time: 3.2 h Resuscitation guidelines AHA/ERC Standards IEC60601-1:1988+A1:1991+A2:1995 (Electrical Safety of Med. Electrical Devices) IEC60601-1-2:2001 (Electromagnetic compatib.) IEC60601-1-4:1996+A1:1999 (Programmable electrical medica
