Lýsing

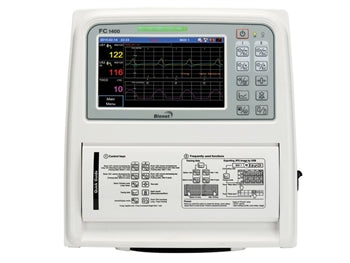

GIMA FC1400 TWINS FOETAL MONITOR er háþróaður fósturvöktunartæki sem hentar vel fyrir tvíburafóstur. Með LCD skjá og háþróaðri tækni veitir tækið nákvæmar mælingar á hjartslætti fóstursins. Hentar vel fyrir lækna og ljósmæður sem þurfa áreiðanlegar niðurstöður í fósturgreiningum.
Tæknileg gögn
| Tegund | Medical device |
| Flokkur (CE) | II B |
| EAN | 8809276943606 |
| CND | Z12080103 |
📄 Hlaða niður gagnablaði (PDF)
Lýsing á ensku
Technical Specifications Dimensions 296x97.5xh 305.5 mm - Approx. 2.9kg Display 7" TFT Wide LCD screen (800x480) Thermal array printer: print speed: 1, 2, 3 cm/min (real time) / paper feeding function Power input: 100-240 V, 1.5-0.7 A, 50-60 Hz / output: +18 V = 2.8 A Li-ion battery (option) 4 hours (charging) - 2 hours (discharging) External link LAN, Wi-Fi, USB memory Foetal heart rate input signal: ultrasound pulsed doppler ultrasound frequency: 1.0 Mhz, 975 Khz ultrasound power: <10 mW/cm2 FHR detection method: autocorrelation FHR range: 50-210 bpm ±1 bpm (120-160) Foetal movement measurement detection source: ultrasound pulsed doppler, event marker Uterine contraction input source: external transducer reference control: one touch switch, auto zeroing measurement range: 0-99 Auto CTG analysis average baseline FHR number of TOCO number of acceleration number of deceleration late deceleration early deceleration variable deceleration high episode low episode short term variability signal loss
