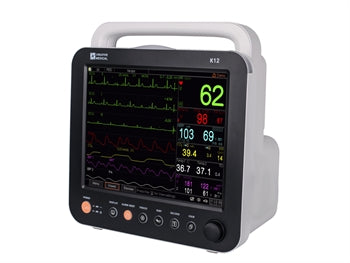

GIMA K12 fjölþátta skjár er fjölhæfur mælir sem býður upp á nákvæmar mælingar á ýmsum lífmerkjum. Hann er hannaður til að mæta þörfum heilbrigðisstarfsfólks með áreiðanlegum og nákvæmum niðurstöðum.
- ECG inntak: ±(0.5~5 mVp)
- Breiðband: 0.05~150 Hz (Greining), 0.5~40 Hz (Vöktun), 1~20 Hz (Rekstur)
- HR mælisvið: 15~350 bpm ±1% eða ±2 bpm
- RESP mælisvið: 0~120 rpm ±5% eða ±2 rpm
- TEMP mælisvið: 21.0~50.0 °C ±0.2 °C frá 25~45 °C
- NIBP tækni: Oscillometric aðferð
- NIBP mælisvið: SYS: 40~275 mmHg (Fullorðnir)
Hentar fyrir
Sjúkrahús, Heilsugæslu, Læknastofur
Lýsing á ensku (Original English)
Technical Specifications ECG Input dynamic range: ±(0.5~5 mVp) Differential input impedance: =10 MO Bandwidth: 0.05~150 Hz (Diagnostic), 0.5~40 Hz (Monitoring), 1~20 Hz (Operation) CMRR: =90 dB (Diagnostic) / =105 dB (Monitoring & Operation) Sensitivity selection: ×1/4, ×1/2, ×1, ×2, ×4 and Auto Sweeping speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s HR measuring range: 15~350 bpm ±1% or ±2 bpm, whichever is greater Pacemaker pulse detection and rejection function RESP Measuring range: 0~120 rpm ±5% or ±2 rpm, whichever is greater TEMP Measuring range: 21.0~50.0 °C ±0.2 °C from 25~45 °C NIBP Technique: Oscillometric method Typical measurement time: <30 seconds (adult cuff) NIBP measuring range: SYS: 40~275 mmHg (Adult) / 40~200 mmHg (Pediatric) / 40~135 mmHg (Neonate) NIBP measuring range: DIA: 10~210 mmHg (Adult) / 10~150 mmHg (Pediatric) / 10~95 mmHg (Neonate) NIBP measuring range: MAP: 20~230 mmHg (Adult) / 20~165 mmHg (Pediatric) / 20~110 mmHg (Neonate) NIBP measurement mode: Manual, Auto, STAT, Multi-cycle mode NIBP measuring accuracy: Mean difference: ±5 mmHg Standard deviation: 8 mmHg Auto measuring intervals: 1-480 min SpO2 Technique: Dual-wavelength optical method Measuring
